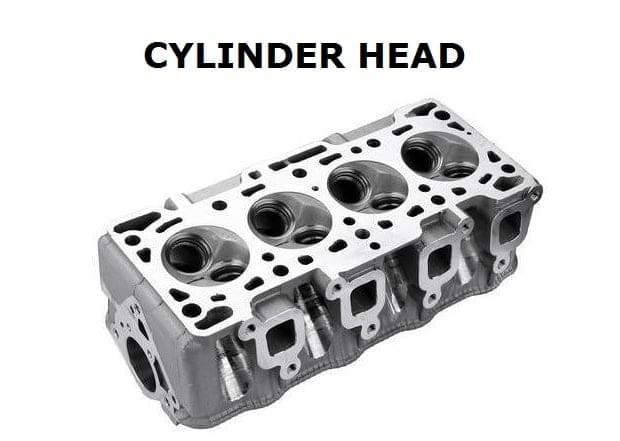

Why Does an Engine Have a Cylinder Head?

1. Introduction

Engines run with mechanical movements so precise that minute adjustments can affect performance. One of those is valve clearance, which plays a big role in smooth engine operation. It’s the small gap between the valve stem and the rocker arm or camshaft that allows for thermal expansion when the engine is hot. Proper spacing is the key to proper combustion, fuel efficiency, and engine wear. There is too little space, and the valve won’t fully close, resulting in compression loss and engine overheating. Too much space and it will be noisy and inefficient. In this article we will talk about the importance of this adjustment, how it affects engine performance, and the best practices in maintaining it. Knowing this part of engine mechanics can save you from expensive repairs and long-term reliability.

2. What Is a Cylinder Head and What Does It Do?

The head is the top bit of the engine block and is a critical component of an internal combustion engine. It seals the combustion chamber, controls airflow, and houses intake and exhaust passages, valves, and camshafts. One of its main jobs is to create a closed environment for fuel combustion. It makes sure the air-fuel mixture enters the chamber efficiently and the exhaust gases exit smoothly. It also has cooling channels to prevent overheating by circulating coolant or dissipating heat through airflow depending on the engine type. Beyond thermal management, this component also supports proper lubrication to reduce friction in moving parts. A well-maintained head means a more efficient engine, better fuel economy, and longer engine life. Any issues with this part like cracks or warping due to extreme temperatures can lead to performance loss and costly repairs. In summary, this vital piece of engineering is more than just a cover for the engine – it allows efficient combustion, controls temperature,e and houses the critical mechanical bits that keep the engine running.

3. Structure and Materials of a Cylinder Head

The cylinder head is a precision-engineered part that can withstand high pressures and temperatures. It varies in design depending on the engine type but generally has multiple integrated passages and chambers for combustion, cooling, and lubrication.

Structural Design

This part houses the intake and exhaust ports, camshafts and valves that contributes to the engine efficiency. The shape and arrangement of these depends on whether the engine is gasoline or diesel. Modern designs also have advanced sealing mechanism to prevent leaks and maintain compression.

Materials Used

To ensure durability and heat resistance, manufacturers use high-strength materials such as:

• Aluminum Alloys – Common in modern engines because of their lightweight properties and good heat dissipation, which improves fuel efficiency.
• Cast Iron – Found in older or heavy-duty engines, has great durability but adds weight.
• Composite Alloys – Some manufacturers blend materials to make them stronger and lighter.

The choice of material affects engine performance, fuel consumption, and longevity. Proper maintenance and cooling system efficiency is key to prevent warping or cracking that can compromise the engine’s operation.

4. Key Components of a Cylinder Head

The cylinder head has several key components that contribute to efficient combustion, airflow regulation, and overall engine performance. These parts work together to ensure proper fuel delivery, exhaust removal, and thermal management.

1. Intake and Exhaust Ports

• These passages allow air-fuel mixture to enter and burned gases to exit.
• Properly designed ports improve engine efficiency and power output.

2. Valves (Intake and Exhaust)

• Intake valves control the entry of the air-fuel mixture.
• Exhaust valves release burned gases from the combustion chamber.
• The precise movement of these parts ensures optimal engine performance.

3. Camshafts and Rocker Arms

• Camshafts regulate the opening and closing of the valves at the right time.
• Rocker arms transfer the motion from the camshaft to the valves.

4. Combustion Chamber

• Located inside the cylinder head, this is where the ignition of the air-fuel mixture occurs.
• Its design affects power, fuel efficiency, and emissions.

5. Fuel Injectors (in Direct Injection Engines)

• Responsible for delivering fuel into the combustion chamber with precision.
• Found in both gasoline and diesel engines to optimize fuel efficiency.#### **6. Spark Plugs (in Gasoline Engines)
• Ignites the compressed air-fuel mixture, combustion occurs.
• Placement in the head affects engine efficiency and power output.

7. Glow Plugs (in Diesel Engines)

• Assists in starting the engine by preheating the combustion chamber.
• Required for cold starts in diesel vehicles.

8. Cooling and Lubrication Channels

• These integrated passages help to dissipate heat and circulate oil to reduce friction.
• Proper cooling prevents overheating and maintains long-term reliability.

Each of these parts is crucial for engine efficiency, smooth operation, and longevity of the powertrain. Regular maintenance and inspection prevent premature wear and costly repairs.

5. Common Cylinder Head Defects and Their Causes

The cylinder head is constantly exposed to extreme temperatures and high pressure, making it vulnerable to various issues over time. If not addressed early, these problems can lead to serious engine damage and expensive repairs. Below are the most common defects and their causes.

1. Cracked Cylinder Head

A fracture in the cylinder head can cause coolant leakage, loss of compression, and engine overheating.

Causes:

• Excessive heat due to a malfunctioning cooling system.
• Rapid temperature fluctuations (thermal shock).
• Manufacturing defects or poor material quality.

2. Warped Cylinder Head

When exposed to prolonged overheating, the metal structure can deform, leading to improper sealing and performance loss.

Causes:

• Running the engine with low coolant levels.
• Overheating due to a faulty radiator or water pump.
• High mileage and prolonged exposure to extreme conditions.

3. Leaking Head Gasket

The head gasket sits between the engine block and the cylinder head, preventing leaks of coolant, oil, and combustion gases. A failure in this seal can cause significant engine problems.

Causes:

• Excessive heat breaking down gasket material.
• Improper installation or excessive torque on head bolts.
• Engine block or head warping, leading to an uneven surface.

4. Valve Seat Damage

The valve seat ensures a tight seal when the valves close. If damaged, it can cause compression loss and reduced engine efficiency.

Causes:

• Poor lubrication leads to increased wear.
• Carbon buildup causes improper sealing.
• Overheating leads to metal fatigue.

5. Oil and Coolant Mixing

A failing seal between coolant and oil passages can lead to fluid contamination, causing internal engine damage.

Causes:

• Cracked cylinder head or damaged gasket.
• Extreme pressure inside the engine.
• Prolonged overheating leads to material failure.

6. Exhaust Port Erosion

Prolonged exposure to hot exhaust gases can wear down the exhaust ports, reducing performance and leading to leaks.

Causes:

• Poor fuel quality causes excessive carbon buildup.
• High engine load and aggressive driving habits.
• Exhaust gas recirculation (EGR) malfunctions increasing temperature.

Preventing Cylinder Head Defects

• Regularly check coolant levels and ensure the cooling system is functioning properly.
• Avoid excessive engine loads and overheating situations.
• Perform routine oil changes to maintain proper lubrication.
• Inspect for leaks or early warning signs such as rough idling, smoke from the exhaust, or loss of power.

By addressing these issues early, you can prevent major engine failures and keep your vehicle running efficiently for years to come.

6. Repair vs. Replacement of a Cylinder Head

When a cylinder head develops defects, vehicle owners often face a critical decision—whether to repair the damaged component or replace it entirely. The right choice depends on the severity of the issue, repair costs, and long-term reliability.

1. When Should You Repair a Cylinder Head?

Minor damage or wear can often be fixed without the need for full replacement. Some common repairable issues include:

• Surface Warping – If overheating has slightly deformed the cylinder head, it can be resurfaced to restore a proper seal.
• Cracks and Small Fractures – Some cracks can be welded or repaired using specialized techniques like metal stitching.
• Valve Seat Wear – If the seating area is damaged, it can be re-machined or replaced.
• Thread Damage – Stripped threads in bolt holes can often be repaired with inserts.

Advantages of Repairing:
✅ Lower cost compared to full replacement.
✅ Preserves the original head, avoiding compatibility issues.
✅ Reduces downtime if the damage is minor.

Disadvantages:
❌ Repairs may not last if the damage is extensive.
❌ Some welding or machining can weaken the structure.

2. When Is Cylinder Head Replacement Necessary?

In cases where the damage is severe, a complete replacement is the better option. Replacement is often required when:

• Deep or Extensive Cracks – Large fractures compromise structural integrity, making repairs unreliable.
• Severe Warping or Distortion – If resurfacing exceeds the manufacturer’s tolerance, replacement is the only viable solution.
• Multiple Failed Repairs – If a previously repaired head continues to fail, replacing it may save money in the long run.
• Excessive Corrosion – Long-term exposure to coolant contamination or poor maintenance can cause irreparable damage.

Advantages of Replacement:
✅ Restores engine performance and longevity.
✅ Eliminates recurring issues caused by repeated repairs.
✅ Reduces the risk of future breakdowns.

Disadvantages:
❌ Higher upfront cost.
❌ Requires precise matching to the engine type and model.

3. Cost Considerations

The decision to repair or replace depends heavily on the cost-effectiveness of each option. Typically:

• Resurfacing a head: $100–$300
• Crack repairs: $200–$500
• Full replacement: $500–$2,500+ (depending on vehicle make and model)

Final Verdict: Repair or Replace?

• If the damage is minor and within repairable limits, fixing the existing head is a cost-effective solution.
• If the structural integrity is compromised, replacement is the safest and most reliable choice.
• Always consult a professional mechanic for an accurate assessment before making a decision.

By carefully evaluating the extent of damage, repair options, and costs, you can make an informed choice that ensures long-term engine health and performance.

7. Symptoms of Cylinder Head Issues

A failing cylinder head can cause significant engine problems if left unaddressed. Recognizing early warning signs can help prevent costly repairs and potential engine failure. Here are the most common symptoms indicating an issue with this critical component.

1. Engine Overheating

One of the first signs of a problem is excessive heat buildup. Since the cylinder head plays a vital role in cooling, any cracks or gasket failures can lead to overheating.

Possible Causes:

• Coolant leaks due to a damaged head.
• Blocked cooling passages reduce heat dissipation.
• A failing thermostat or radiator issue.

2. White Smoke from the Exhaust

If you notice thick white smoke coming from the tailpipe, it could indicate coolant leaking into the combustion chamber due to a cracked head or a blown gasket.

Why It Happens:

• Coolant burns inside the engine, creating visible steam.
• Internal cracks allow fluid to mix with the fuel-air mixture.

3. Loss of Engine Power

A damaged cylinder head can lead to compression loss, reducing overall engine efficiency. The vehicle may feel sluggish, struggle to accelerate, or misfire.

Potential Reasons:

• Warped or cracked head affecting valve sealing.
• Gasket failure leads to compression leaks.
• Worn-out valve seats causing poor combustion.

4. Coolant or Oil Contamination

If oil appears milky or coolant has an oily texture, it suggests fluid mixing inside the engine. This contamination can cause serious internal damage.

Common Causes:

• A cracked head allowing oil and coolant to mix.
• A failing head gasket breaks the seal between fluid passages.

5. Engine Misfires or Rough Idling

A malfunctioning cylinder head can disrupt the combustion process, leading to irregular engine performance, especially at idle or under load.

Why This Happens:

• Valves or spark plugs are affected by fluid leaks.
• Improper sealing due to a warped surface.
• Carbon buildup reduces efficiency.

6. Visible Coolant Leaks

Coolant pooling under the vehicle or near the engine bay may indicate a leak from the head, leading to overheating and engine damage.

Possible Reasons:

• Small cracks in the head structure.
• Loose or damaged head bolts cause leaks.

7. Unusual Engine Noises

A ticking or knocking sound could signal excessive wear or poor sealing, preventing the engine from operating smoothly.

Potential Causes:

• Valve train issues due to lack of lubrication.
• Warped or cracked head affecting engine timing.

What to Do If You Notice These Symptoms

• Check fluid levels – Low oil or coolant may indicate a leak.
• Look for visible cracks – Inspect the engine bay for damage.
• Consult a professional – A mechanic can run a compression test to confirm issues.

Ignoring cylinder head problems can lead to severe engine failure. Identifying and fixing these symptoms early can help extend engine life and prevent expensive repairs.

8. How Is the Cylinder Head Cooled?

The cylinder head operates under extreme temperatures due to the combustion process inside the engine. Proper cooling is essential to prevent overheating, warping, or cracks that could lead to severe engine damage. Automakers use two primary cooling methods to regulate temperature and maintain optimal performance.

1. Water-Cooled Cylinder Heads

Most modern engines use a liquid-based cooling system, where coolant circulates through channels inside the cylinder head to absorb and dissipate heat efficiently.

How It Works:

• A coolant mixture (water and antifreeze) flows through passages within the cylinder head.
• The heat is transferred from the metal surface to the coolant.
• The heated fluid is then circulated to the radiator, where it is cooled before returning to the engine.

Advantages:
✅ More efficient heat dissipation, making it suitable for high-performance engines.
✅ Prevents localized overheating and maintains uniform temperatures.
✅ Works effectively in extreme weather conditions.

Potential Issues:

• A leaking head gasket can allow coolant to mix with oil, causing engine contamination.
• Corrosion or blockages in the cooling passages can reduce efficiency.
• A malfunctioning water pump or radiator can cause overheating.

2. Air-Cooled Cylinder Heads

Some engines, particularly in motorcycles, small aircraft, and older vehicles, rely on air cooling instead of liquid-based systems.

How It Works:

• Cooling fins on the surface of the cylinder head increases the surface area for heat dissipation.
• As the vehicle moves, airflow removes excess heat from the metal surface.
• Some designs include additional fan-assisted cooling for improved efficiency.

Advantages:
✅ Simpler design with fewer components, reducing maintenance needs.
✅ Eliminates the risk of coolant leaks or freezing in cold climates.
✅ Lighter weight, making it ideal for small or compact engines.

Potential Issues:

• Less effective at cooling compared to liquid-based systems.
• Can struggle in hot weather or under heavy loads.
• Requires proper ventilation and airflow to function efficiently.

Which Cooling System Is Better?

• Water-cooled systems are ideal for high-performance and modern engines due to their superior cooling capacity.
• Air-cooled systems are simpler, but they are best suited for lightweight applications where extreme cooling isn’t necessary.

Maintenance Tips for Efficient Cooling

• Regularly check coolant levels and top up as needed.
• Inspect cooling fins (for air-cooled systems) to ensure they are free from debris.
• Flush the cooling system periodically to prevent blockages.
• Ensure the thermostat and radiator fan are functioning correctly.

By maintaining an efficient cooling system, you can extend the lifespan of the cylinder head and ensure reliable engine performance in all driving conditions.

The cylinder head is a critical component of an engine, playing a key role in sealing the combustion chamber, regulating airflow, and maintaining proper cooling. Its structural integrity and functionality directly impact engine performance, efficiency, and longevity.

Understanding its design, key components, and potential defects helps vehicle owners make informed decisions about maintenance and repairs. From recognizing early warning signs of damage—such as overheating, power loss, or coolant leaks—to choosing between repair or replacement, proactive care ensures optimal engine operation.

Additionally, effective cooling—whether through liquid or air—prevents overheating and extends the lifespan of this essential component. Regular inspections, timely servicing, and using high-quality parts can help prevent costly breakdowns.

By prioritizing proper maintenance and addressing issues early, drivers can maximize engine reliability and ensure smooth performance for years to come.
